Lookie what Les set me up with.
Fool proof chem draw system.
Stolen Sparklettes bottle aside...
Fool proof chem draw system.
Stolen Sparklettes bottle aside...
Hey meAt, KMA!
- Thread starter Mikey P
- Start date
Dolly Llama
Number 5
Mikey P said:
you'd think a TM that costs a million bukz would already have a RELIABLE chem feed.... :roll:
BuTlEr is the other one
of the dudes that advocate clear water rinse only, my contention has always been...they never had a RELIABLE chem feed system and got fed up with those quirky junk chem pumps...
..L.T.A.
Dolly Llama
Number 5
floorguy said:
you have to starve the pump a little somewhere upstream of the draw tube or it won't draw
..L.T.A.
Blue Monarch
Supportive Member
Someone needs to post a step by step(with pics) instructional post on how to do this.
Seems like an easy enough setup that works. Makes me wonder why some of the manu's do it the way they do.
Seems like an easy enough setup that works. Makes me wonder why some of the manu's do it the way they do.
its really simple. install a t fitting inline of your fresh water inlet run a hose to the top side of the dwyer flowmeter, then a hose from the bottom side of the flowmeter to a jug. I would put a screen fitting on the line to your jug. You also need a valve on the fresh water inlet side in order to restrict flow. once you start restricting water inflow to the pump then it will start sucking from the flowmeter/chemjug. If you use a flowmeter with the little black knob then you can pull a little higher number like 5 or 6 then dial it down to 2 or 3 etc.
If you dont have a freshwater tank and hook up to a spigot then u need a watts regulator and a check/footvalve on the jug side of the flowmeter. That way u can restrict the water pressure coming in and the check/footvalve will keep water from back flowing through the flowmeter into your chem jug.
my last step works great. cant imagine going back to a siphon system.
If you dont have a freshwater tank and hook up to a spigot then u need a watts regulator and a check/footvalve on the jug side of the flowmeter. That way u can restrict the water pressure coming in and the check/footvalve will keep water from back flowing through the flowmeter into your chem jug.
my last step works great. cant imagine going back to a siphon system.
Dolly Llama
Number 5
Blue Monarch said:
I don't "know" this to be true, Dirk, but i suspect it's because of all the CRAPPY emulsifiers on the market ("crappy in regards to scale making in spades) and dudes too lazy or stupid to know when or how to descale
siphon feed systems run detergent thru the pump and heater coils
..L.T.A.
Blue Monarch
Supportive Member
My bad, I was thinking this was possible on the outlet side of the pump.
I'm not too interested in running junk through the pump and HX.
I'm not too interested in running junk through the pump and HX.
Mikey P
Administrator
Well then quit running "junk".. dumb ass.
Leslie Judson Jones
Member
- Joined
- May 12, 2007
- Messages
- 2,242
There is no problem running extraction chemical through the pump. It actually helps it. It lubricates it.
When a pump is pumping water only, there is a lot more friction between the plunger and the rubber seals.
Judson has been doing this injection system for 35 years now and we know for a fact that it extends the life of the pumps.
The chemical injection systems that you see on units are all from the pressure washing industry. In that industry, there are higher costic chemicals being used, so they definitely don't want them to go through the pump. As far as the carpet cleaning industry, I can 't think of an extraction chemical on the market that would actually damage the pump by running it through it.
I think maybe an acid might do some harm, but would probably just corrode the actual metal of the pump. There is one thing about this system. It is extremely reliable. Basically the only way it can fail is if the pump has a problem.
When a pump is pumping water only, there is a lot more friction between the plunger and the rubber seals.
Judson has been doing this injection system for 35 years now and we know for a fact that it extends the life of the pumps.
The chemical injection systems that you see on units are all from the pressure washing industry. In that industry, there are higher costic chemicals being used, so they definitely don't want them to go through the pump. As far as the carpet cleaning industry, I can 't think of an extraction chemical on the market that would actually damage the pump by running it through it.
I think maybe an acid might do some harm, but would probably just corrode the actual metal of the pump. There is one thing about this system. It is extremely reliable. Basically the only way it can fail is if the pump has a problem.

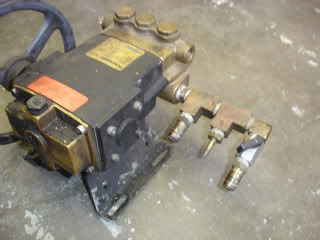

I like Mike's a little more, but this is the set up I had when I cleaned (before having access to Les's wisdom), in fact the pump still ran fine the day i removed it, if someone needs a pump cheap ready to go, just PM me.

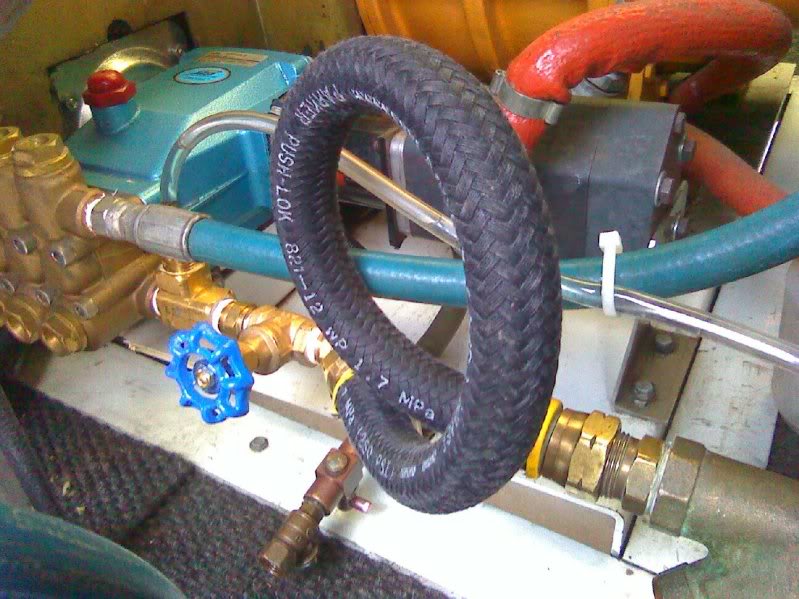

As you can see, I had the starve set with a ball valve barely closed, and the regulator bypass came in close to the pump head, and the dwyer fed in between....foolproof, always worked.
I can think of another reason to Stay with a simple siphon, you don't have to worry about blowing diaphrams and bypassing your chem system just because you are running high pressure, 800 psi is brutal on diaphram pumps.
And O2 rinse cleans HXers not scales them.
As you can see, I had the starve set with a ball valve barely closed, and the regulator bypass came in close to the pump head, and the dwyer fed in between....foolproof, always worked.
I can think of another reason to Stay with a simple siphon, you don't have to worry about blowing diaphrams and bypassing your chem system just because you are running high pressure, 800 psi is brutal on diaphram pumps.
And O2 rinse cleans HXers not scales them.
Mikey P said:
My Prochem chem feed has always works great. I did just have it taken apart and serviced, but that was just for maintenance.
They call it a last step stainless steel chemical injection system.
What should I be watching out for and what are the problems with this system?
Dolly Llama
Number 5
Greenie said:
.
is that a Grainger Teel pump?
I have two of them in my pole barn.
One of 'em doesn't have a 100 hours on it
..L.T.A.
bob vawter
Grassy Knoller
didn't we go through this a few times already........?
Jim Martin
Supportive Member
is there any reason at all that one could not just put a straight chemical injector inline and be done with it....
you can get them fixed rate....
or any type of an adjustable rate ...and in any thread size you need.....
they also have some that are duel port for us that run 2 different tanks....
you can get them fixed rate....
or any type of an adjustable rate ...and in any thread size you need.....
they also have some that are duel port for us that run 2 different tanks....
Shane T
Member
Jim, The Dema valve you show in the middle is the one I have used for years. Installed on the inlet side of pump, it has adjustments to reduce(restrict) water flow through it and another to adjust chem feed. Used along with an adjustable Dwyer meter you can dial in real nice.
Les, The only problem I have had with this type of system is when I change to an upholstery tool. Seems the dramatically lower flow causes the Dema not to draw unless I adjust the restriction. Do you have any answers to this?
Les, The only problem I have had with this type of system is when I change to an upholstery tool. Seems the dramatically lower flow causes the Dema not to draw unless I adjust the restriction. Do you have any answers to this?
hogjowl
Idiot™
Les:
If you gave him that for free, I am not buying another jug of O2 from you ever again.
If you gave him that for free, I am not buying another jug of O2 from you ever again.
The Preacher
Member
- Joined
- Oct 13, 2006
- Messages
- 3,401
admiralclean said:
Les, say or type yes as fast as you can, getting rid of MArdy that easy is a blessing!!!
truckmount girl
1800greenglides
A cheap automotive fuel pump works great too.
Take care,
Lisa
Take care,
Lisa
bob vawter
Grassy Knoller
once you have a properly installed chem draw...you will THROW that stupid dema away.....the real main purpose is to contol the BACKFLOW and that is what a FOOTVALVE does.......
Jimbo
Member
- Joined
- Oct 7, 2006
- Messages
- 2,197
Greenie or Les should make a plug and play Dema kit for owners who have a last step chem pump...to use as a backup for when a chem pump diaphram goes out...
Might sell a few of them.
Might sell a few of them.
Jim Martin
Supportive Member
I have been studying this and talking with a lot of pressure wash guys and they tell me the best way for me to go that is worry free is to take the one in the third picture and put it in line with the cat pump.......
branch it off to my adjustable Dwyer meter..and from there to my 3 way valve ( left tank ..right tank..off )
that way I have full control over it on which tank I want to use plus I can shut it off if needed.....
and of course a foot/one way valve in each jug
branch it off to my adjustable Dwyer meter..and from there to my 3 way valve ( left tank ..right tank..off )
that way I have full control over it on which tank I want to use plus I can shut it off if needed.....
and of course a foot/one way valve in each jug
B&BGaryC
Member
- Joined
- Apr 6, 2007
- Messages
- 4,667
- Name
- B&BGaryC
I haven't had problem 1 with my system. I regularly run heat wave, white lightning, power point, end zone, fab set and fab clean. Not to mention additives like boost all, buff all, lemon apple or cinamin deos.Mikey P said:
BradFenstermaker
Member
Mikey or Jim
Mikey or Jim does your hot water bypass/recirculate back into the fresh? If so how does the chem not get to the freshtank?
I believe mine bypass's so was told this type of chem inject would not work. Correct me if I am wrong please.
Really don't want to bother with the inj pumps. Been just mixing in the h2o tank.
Mikey or Jim does your hot water bypass/recirculate back into the fresh? If so how does the chem not get to the freshtank?
I believe mine bypass's so was told this type of chem inject would not work. Correct me if I am wrong please.
Really don't want to bother with the inj pumps. Been just mixing in the h2o tank.
Mikey P
Administrator
it does Brad... and who cares.
